Corridor Bracket

Name: Street Blade Wing Bracket
Brand: Signature Streetscapes
SKU: WB-L09
Price: 42.00 USD
Availability: InStock

$63.00
Usually Ships within 2-6 Weeks

Shipping calculated at checkout.

All Sales Final

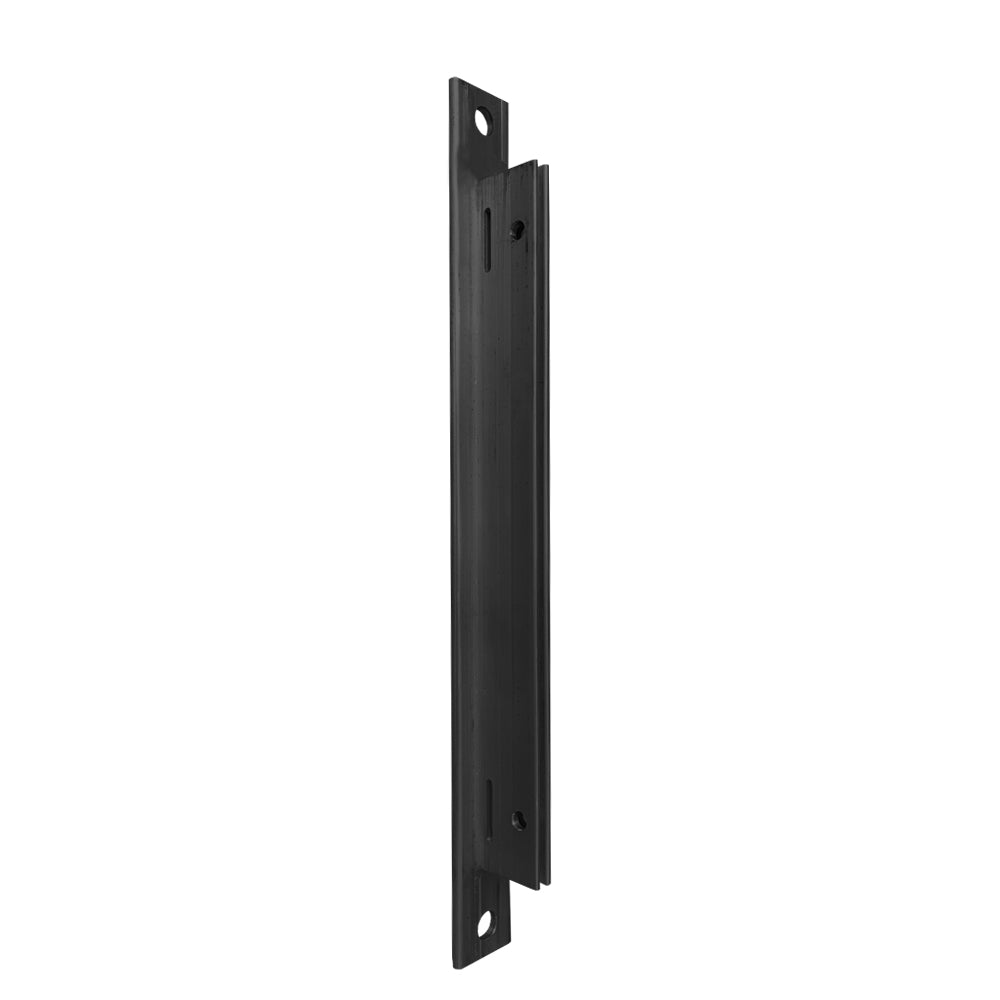

Bring dependable performance to your signage system with our aluminum Corridor Bracket available in a black powder coat or mill finish. Designed for both durability and visual consistency, this bracket features a sleek black powder coat finish that resists chipping, fading, and corrosion—making it ideal for long-term outdoor use in pedestrian corridors, campuses, downtown districts, and commercial properties.

Recommended for signs with widths up to 24".

[{"id":49099593744692,"title":"Black Powder Coat","option1":"Black Powder Coat","option2":null,"option3":null,"sku":"WB-COR14-BLACK","requires_shipping":true,"taxable":true,"featured_image":{"id":47523780591924,"product_id":9328571056436,"position":1,"created_at":"2026-04-17T09:20:22-04:00","updated_at":"2026-04-17T09:20:23-04:00","alt":null,"width":1000,"height":1000,"src":"\/\/signaturestreetscapes.com\/cdn\/shop\/files\/CorridorBracket.jpg?v=1776432023","variant_ids":[49099593744692]},"available":true,"name":"Corridor Bracket - Black Powder Coat","public_title":"Black Powder Coat","options":["Black Powder Coat"],"price":6300,"weight":286,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":39165975396660,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/signaturestreetscapes.com\/cdn\/shop\/files\/CorridorBracket.jpg?v=1776432023"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49099593777460,"title":"Mill Finish","option1":"Mill Finish","option2":null,"option3":null,"sku":"WB-COR14-MILL","requires_shipping":true,"taxable":true,"featured_image":{"id":47523782132020,"product_id":9328571056436,"position":2,"created_at":"2026-04-17T09:27:32-04:00","updated_at":"2026-04-17T09:28:30-04:00","alt":null,"width":1000,"height":1000,"src":"\/\/signaturestreetscapes.com\/cdn\/shop\/files\/WB_COR14-MILL.jpg?v=1776432510","variant_ids":[49099593777460]},"available":true,"name":"Corridor Bracket - Mill Finish","public_title":"Mill Finish","options":["Mill Finish"],"price":5300,"weight":286,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":39165976936756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/signaturestreetscapes.com\/cdn\/shop\/files\/WB_COR14-MILL.jpg?v=1776432510"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Signature Streetscapes Street Blade Wing Brackets

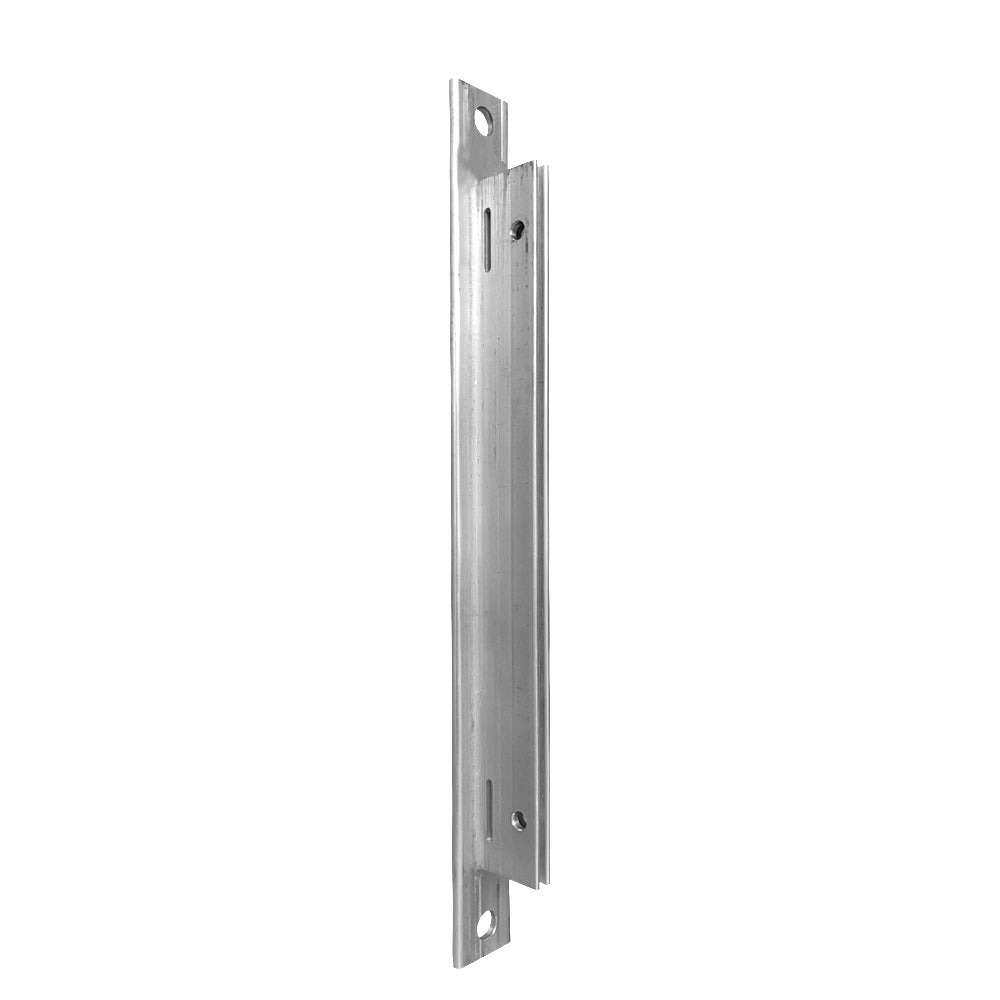

Made of solid rust-free aluminum our Corridor brackets are available to accommodate a variety of sign sizes. Brackets hold a flat 0.080" street sign and can be mounted to our standard posts as well as walls, concrete or wood. Available in a black powder-coated or mill finish.

Corridor Bracket is recommended for sign widths up to 24". For sign heights beyond 30", two Corridor Brackets are recommended.

Hardware Included

Hardware included is to fasten the sign (not included) to the bracket. Mounting hardware will not be provided.

(x2) 10-24 x 3/4" Button Head Screws
(x2) Nuts
(x2) Washers

Technical Specifications

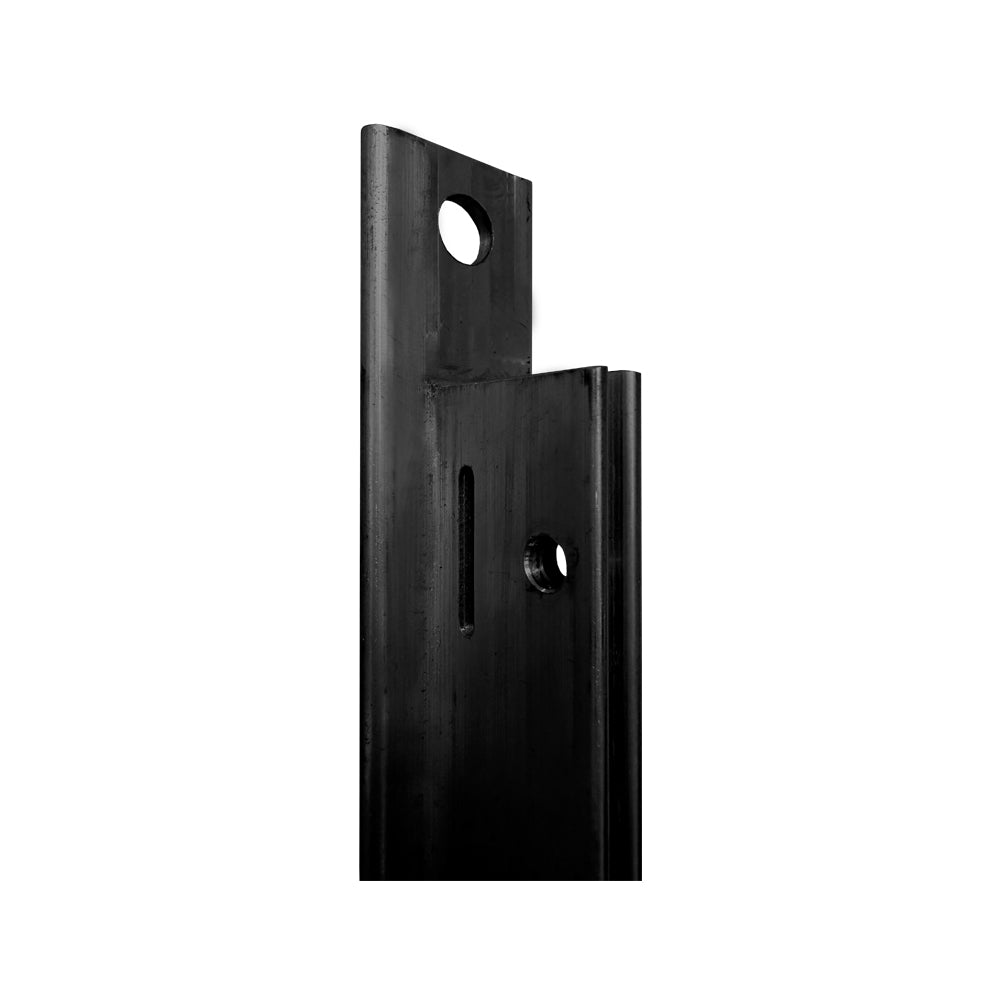

Corridor Bracket

Dimensions: 14" H x 1.125" W x 1.375" D
Can accommodate blade thickness of up to 0.080".
Support is drilled with 2 each 7/16" holes top and bottom for vertical surface mounting. No mounting hardware supplied.
Mount on wall, concrete, wood or a post with screw gear banding straps, or bolts.
These brackets are made of solid rust-free aluminum and are offered in black powder-coat or mill finish. Can be powder-coated with any of our standard color options upon request

Downloads

Applications

Municipal Streetscapes: Maintain clean and uniform sign systems at intersections.
Private Developments & HOAs: Use in decorative signage systems for upscale communities.
Commercial Campuses: Mark building corners, intersections, or wayfinding points.
Parks & Trails: Use for directional signage at trail crossings or multi-path junctions.
Temporary Installations: Ideal for events or construction sites requiring quick, readable signage.

Key Features

Compact, Durable, and Easy to Install

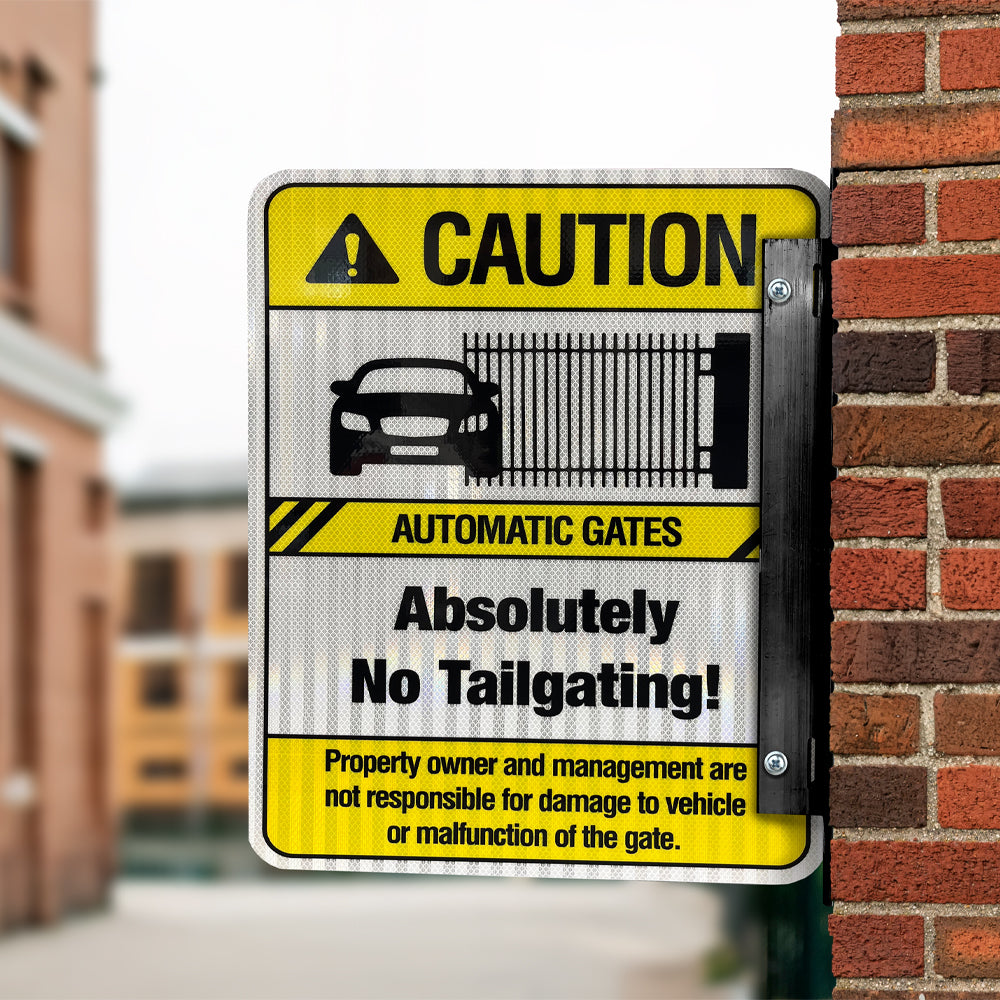

Right-Angle Mounting: Perfect for street sign installations at a 90º angle.
Heavy-Duty Aluminum: Built to withstand rust, corrosion, and environmental wear.
Low-Profile Design: Offers a clean, streamlined appearance with minimal hardware visibility.
Rattle-Free Fit: Tight clamping system ensures signs stay secure, even in windy conditions.
Fits Standard Blades: Designed for flat aluminum street signs up to 0.080" thickness.
Mounts to Vertical surfaces: Compatible with our standard posts.
Compatible Hardware: Screw gear banding straps.
